Long-travel automation creates a particular mechanical challenge. The drive system must move the axis over a substantial distance while maintaining appropriate speed, force and positioning behaviour.
For applications such as gantry systems, material handling equipment and large automated machines, Rack and Pinion for Linear Motion Systems can provide an effective alternative to other linear drive mechanisms.
The correct selection depends on much more than rack length.
When Rack and Pinion Becomes Relevant

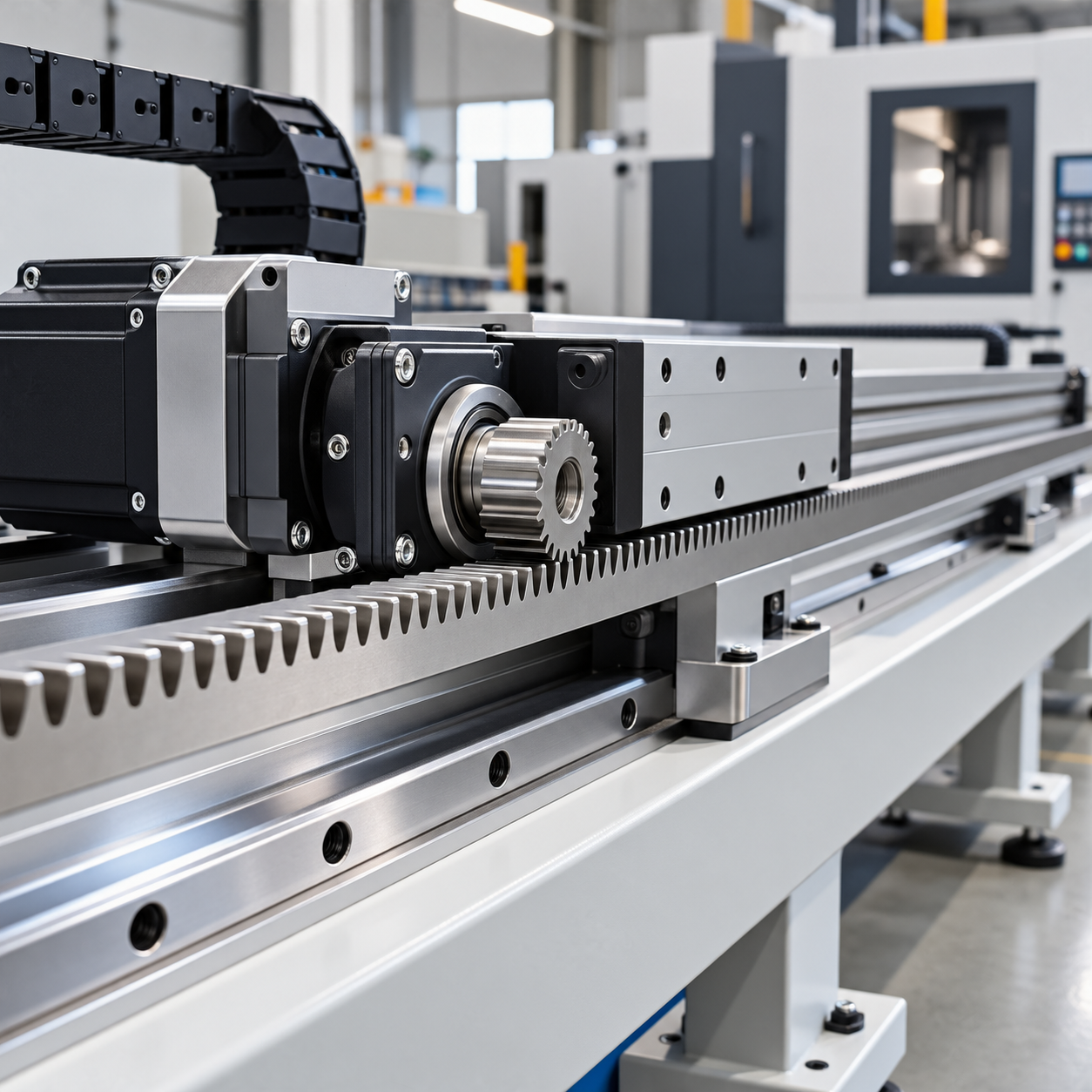

A rack is a straight gear, while the pinion is a circular gear that engages with it. As the pinion rotates, the mechanism produces linear movement along the rack.
One reason machine designers consider this arrangement is its suitability for extended travel.
Long machine axes can create design limitations for certain rotating screw arrangements because shaft length and rotational speed must be considered carefully. Rack-and-pinion systems approach the problem differently because the rack itself remains stationary while the pinion drives along it.
Typical applications can include:
- Gantry automation
- CNC-related equipment
- Material handling systems
- Large cutting machines
- Industrial transfer systems
- Loading and positioning equipment
Suitability still depends on the required accuracy, speed and loading.
Select Module According to the Application
Gear module is an important rack-and-pinion parameter.
The appropriate module relates to tooth size and the loads the gearing needs to transmit. Simply choosing a larger rack does not automatically produce the optimum design.
Engineering calculations should consider transmitted force, duty cycle and desired service conditions.
The pinion must also be properly matched to the rack.
Gearbox Ratio Affects the Final Motion
Rack-and-pinion axes are often driven through a motor and gearbox.
The complete combination determines output speed and available force.
Motor speed, gearbox reduction and pinion size together influence how far the axis travels for a given motor rotation.
For this reason, selecting the rack first and motor later can make system optimization more difficult.
Backlash Needs to Match Positioning Requirements
Gear engagement naturally introduces considerations around backlash.
In general industrial movement, a certain level may be acceptable. In more demanding positioning applications, backlash control can become more important.
Designers should establish the actual accuracy requirement rather than automatically requesting the lowest possible backlash.
Mechanical precision should serve the process requirement.
Mounting Accuracy Is Critical
A long rack needs a suitable mounting reference.
Misalignment between rack sections or inconsistent engagement with the pinion can affect movement quality and wear.
For racks installed in multiple lengths, attention should be given to joint alignment and tooth continuity.
The machine structure itself must also provide sufficient rigidity to maintain the intended gear engagement under load.
Lubrication and Contamination
The rack and pinion contain contacting gear teeth, so lubrication and environmental protection should be considered according to the system design.
Dust, chips and other contamination can be relevant in industrial facilities.
Machine builders should decide how the gearing will be maintained and protected before access becomes restricted by guards or other machine assemblies.
A Readiness Checklist Before Ordering
For B2B procurement teams in Coimbatore, a rack-and-pinion enquiry becomes more productive when the following information is available:
- Total travel length
- Moving load
- Required linear speed
- Acceleration
- Desired positioning performance
- Mounting orientation
- Rack module or calculated load requirement
- Pinion details
- Motor specification
- Gearbox ratio where applicable
- Duty cycle
- Working environment
SSB Industrial Solutions supports industrial automation and machine-building requirements involving Rack and Pinion for Linear Motion Systems in Coimbatore and across Tamil Nadu.
For a new machine, involving the component provider after the load and motion profile have been defined can help engineering and procurement teams evaluate compatible components before fabrication is finalized.
Rack and pinion is particularly valuable when long travel makes the drive architecture a major design consideration. When the rack, pinion, gearbox, motor, guideways and machine structure are treated as one motion system, the resulting equipment can be designed around actual production requirements rather than around individual catalogue components.
