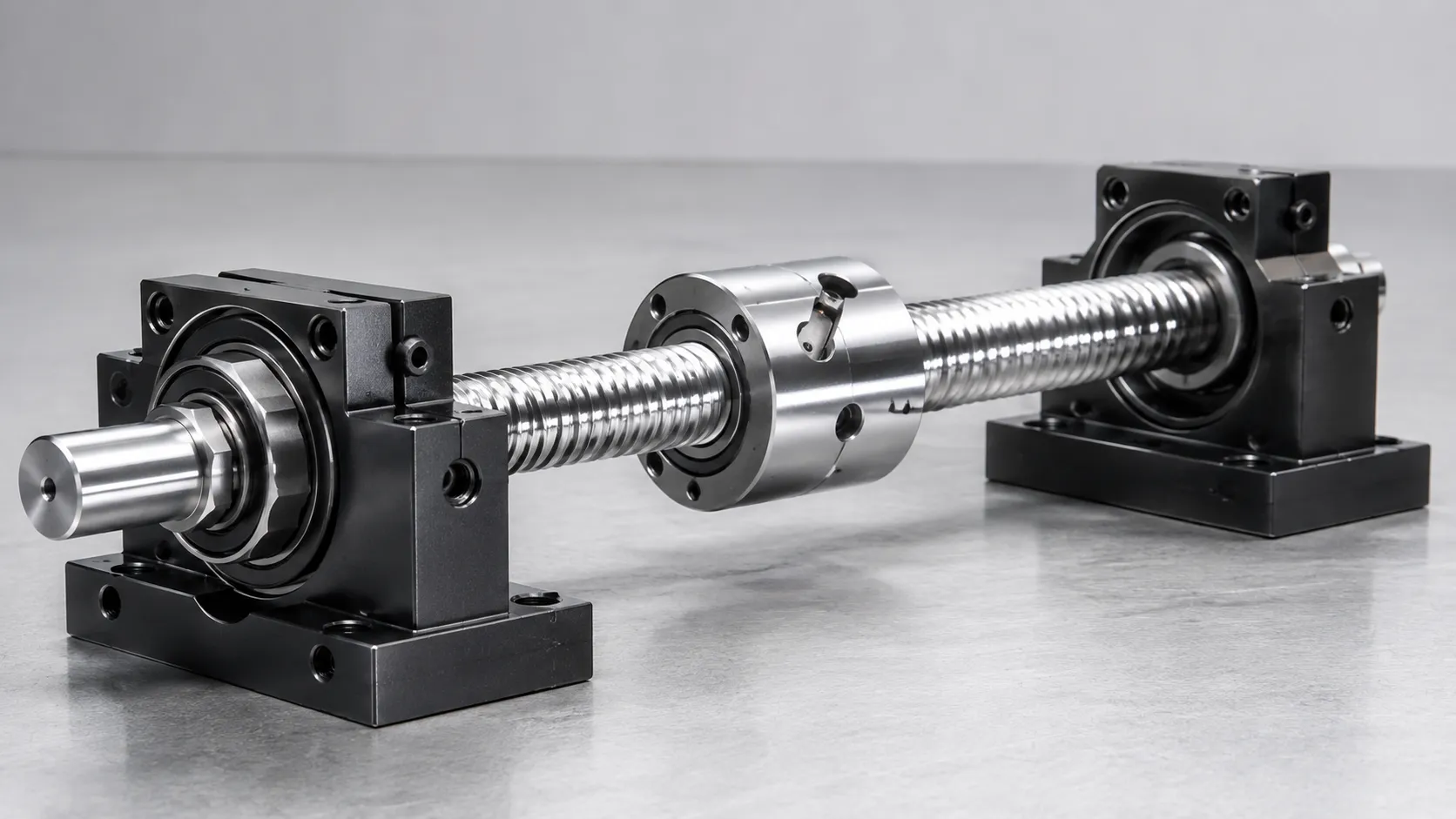

Ball screw systems are recognised for delivering accurate and efficient linear motion in CNC machines, industrial automation equipment, and precision manufacturing systems. While much attention is often given to the ball screw itself, the performance of the entire assembly also depends on properly designed Precision Support Units for Ball Screw Assemblies. These components provide the stability and alignment needed to maintain smooth operation, minimise vibration, and extend machine life.
As manufacturers across Coimbatore continue upgrading production equipment, selecting high-quality support units has become an important part of building reliable and efficient motion systems.
What Are Ball Screw Support Units?
Support units are bearing assemblies installed at one or both ends of a ball screw. They secure the screw shaft, maintain alignment, and support rotational movement under varying loads.
A typical support unit includes:
- Precision bearings
- Bearing housing
- Lock nut arrangement
- Shaft support components
- Sealing elements
Together, these parts ensure that the ball screw operates with maximum accuracy and minimal deflection.
Why Support Units Are Essential
Even a premium ball screw cannot perform effectively without proper end support. Incorrect support arrangements may lead to vibration, positioning errors, and premature component failure.
Quality support units help achieve:
- Stable shaft rotation
- Reduced axial movement
- Improved positioning accuracy
- Higher operating speeds
- Better load distribution
- Longer bearing life
These benefits contribute directly to better machine performance.
Common Industrial Applications
Support units are widely used wherever precision ball screw systems are installed.
Typical applications include:
- CNC machining centres
- Milling machines
- Grinding machines
- Robotics
- Automated assembly equipment
- Packaging machinery
- Semiconductor manufacturing
- Medical equipment
- Inspection systems
- Precision automation machinery
Each application requires support units that match the machine's operating conditions and performance expectations.
How to Select the Right Support Unit
Several technical factors should be considered before purchasing support units.
These include:
Ball Screw Size
The support unit must match the screw shaft dimensions precisely.
Load Capacity
Axial and radial loads should remain within the bearing's specified limits.
Speed Requirements
High-speed applications require bearings capable of maintaining stability at elevated rotational speeds.
Mounting Configuration
Fixed and floating support arrangements influence overall system performance.
Precision Requirements
Machines performing high-accuracy operations require support units with minimal bearing runout and tight manufacturing tolerances.
Benefits of Using High-Quality Support Units
Investing in precision support assemblies offers long-term operational advantages.
These include:
- Improved machining accuracy
- Reduced machine vibration
- Lower maintenance frequency
- Better bearing performance
- Longer ball screw lifespan
- Increased production efficiency
- Reduced operational downtime
Premium support units often deliver lower total ownership costs despite their higher initial investment.
Maintenance Practices That Improve Reliability
Routine maintenance keeps support units operating efficiently throughout their service life.
Recommended practices include:
- Inspect bearings during scheduled servicing.
- Monitor lubrication quality.
- Check lock nut tightness.
- Inspect seals for contamination.
- Monitor vibration levels.
- Replace worn bearings before failure occurs.
Preventive maintenance helps maintain machine precision while avoiding costly production interruptions.
Working with an Experienced Component Supplier
Selecting support units requires careful consideration of the complete motion system rather than individual components alone. Experienced suppliers can recommend compatible solutions that improve machine performance and simplify installation.
SSB Industrial Solutions supports machine manufacturers, industrial automation companies, and OEMs by supplying precision linear motion products tailored to demanding industrial applications. Technical guidance ensures customers select support units that complement their ball screw assemblies while improving reliability and long-term operational efficiency.
For businesses across Tamil Nadu investing in advanced manufacturing technologies, properly selected support units provide the stability and precision required to maximise the performance of modern automation systems.
