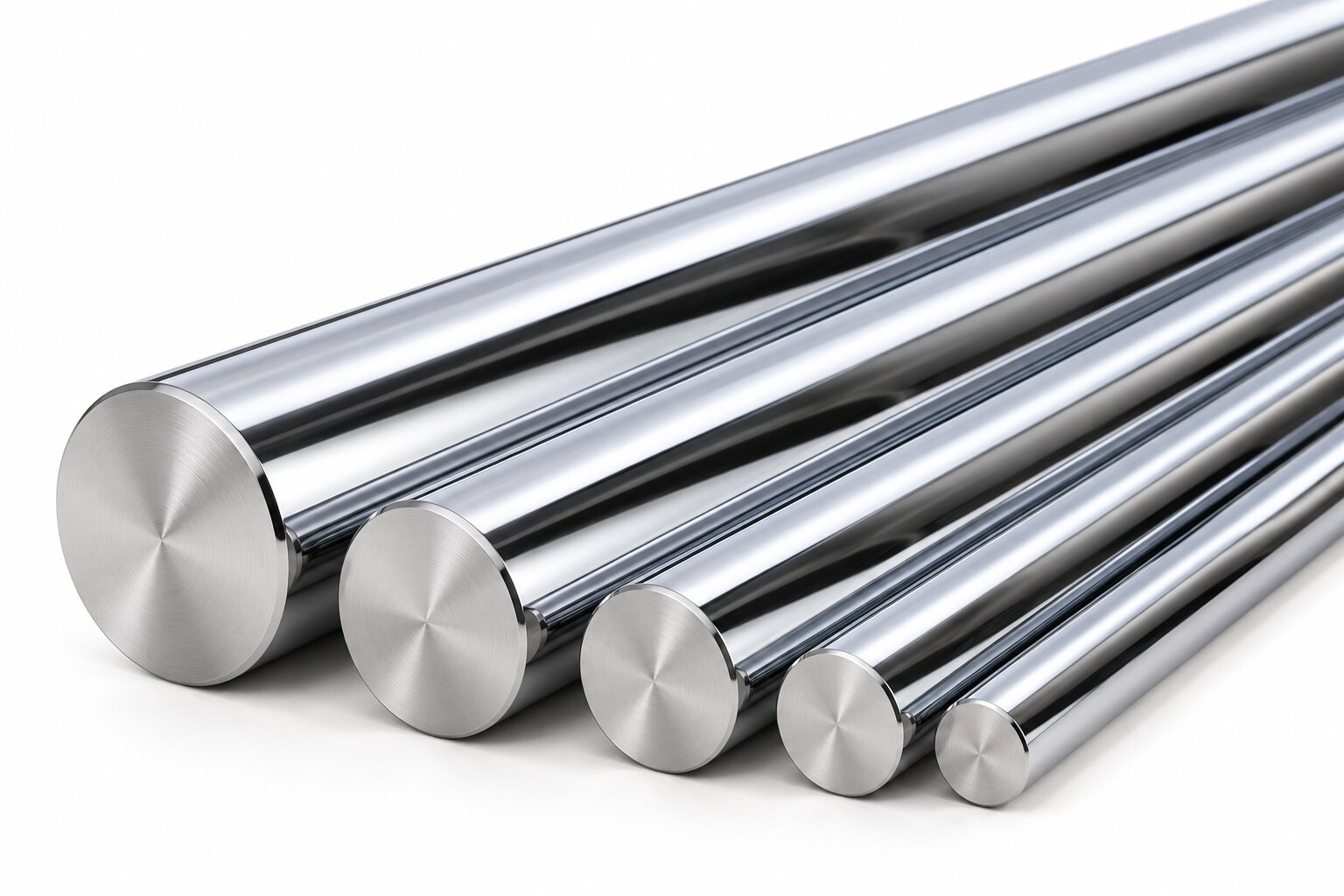

A hard chrome plated rod is worth the money only when its surface, geometry, base steel and service conditions match the machine. By the end, you will be able to estimate cost per usable metre, compare alternatives, check bearing and load fit, and request a quotation that exposes hidden price differences.
Key takeaways
- Compare lifecycle cost, not only the quoted rod price.
- Demand diameter, straightness, hardness and chrome thickness in writing.
- Match the rod to seals, bearings, load and operating conditions.
- Inspect the certificate, surface and dimensions before cutting.
When does a hard chrome plated rod pay for itself?
A higher purchase price is justified when the rod reduces replacement frequency, unplanned downtime and damage to seals or bearings. Compare the complete cost over the machine’s expected service period, not the invoice alone.
- Record the delivered cost: rod, machining, freight, GST, installation and any alignment work.
- Estimate the cheaper rod’s service life from maintenance records, then estimate the hard chrome rod’s life using the actual load, stroke, speed, contamination and wash-down exposure.
- Add the cost of each replacement: lost production hours, labour, dismantling and recommissioning.
- Divide each option’s total cost by its expected service years. Choose the hard chrome rod when its annualised cost is lower and its payback arrives before the machine’s planned replacement.
For example, a rod costing 30% more can pay for itself after one avoided failure if changing it stops a production line for a full shift. Do not count on that result from appearance alone. A hard chrome rod for machinery earns its premium through documented surface hardness, chrome thickness, roundness, straightness and finished-size tolerance.
Check the duty before approving the purchase. Linear bearings need a hardened, ground raceway with a controlled hardened depth; “chrome plated” does not prove that requirement. Hydraulic-cylinder service also depends on seal compatibility, surface roughness, wiper design and chrome integrity.
If the rod faces severe corrosion, impact loading or bending, stainless steel, a coated alternative or a larger shaft can deliver better value than hard chrome.
What should a comparable Coimbatore quotation include?
Compare only quotations built on identical technical and commercial fields, then calculate landed cost per usable metre. The phrase hard chrome plated rod price in Coimbatore means little if one supplier quotes by kilogram and another quotes a cut, inspected, ready-to-install length.
| Quotation field | What to state | Why it changes delivered cost |
|---|---|---|
| Diameter and length | Finished diameter, cut length, tolerance and quantity | Cutting loss and grinding allowance vary |
| Material and surface | Base-steel grade, chrome thickness, hardness and roughness | Plating and finishing work are not identical |
| Geometry | Straightness, roundness and cylindricity limits | Inspection and rejection risk affect price |
| Commercial terms | GST, freight, packing, minimum order and lead time | A low ex-works quote can become expensive delivered |
Request each supplier to quote the same written specification, not merely “20 mm chrome rod.” State whether the rod is for a cylinder, open linear bearing or closed linear bearing.
A linear application may require an h6 finished tolerance, hardened raceway, effective hardened depth and ground surface; ordinary bright bar or piston rod is not an equivalent substitute.
- Ask for material identification, chrome-thickness data, surface-hardness or hardened-depth results, roughness, straightness and inspection records.
- Confirm whether the price includes cutting, end protection, packing, transport and GST.
- Price the usable length after cutting loss, rejected pieces and minimum-order surplus.
- Compare replacement terms and lead time, not just the invoice total.
Separate quotes from an “hardened linear rod supplier in Coimbatore” into induction-hardened ground shafting, hard-chrome-plated piston rod and ordinary chrome-plated bar. Similar appearance does not mean interchangeable performance.
Which rod construction and chrome specification fit the duty?
A chrome shine does not prove that a rod is suitable for linear bearings. Separate the supply into these categories before comparing prices:
| Rod type | Construction clue | Best fit |
|---|---|---|
| Induction-hardened and ground shaft | Hardened raceway with controlled depth, ground diameter | Recirculating or plain linear bearings |
| Hard-chrome-plated piston rod | Chrome over specified base steel, seal-ready finish | Hydraulic or pneumatic cylinders |
| Bright precision bar | Accurate size but no defined hardened raceway | Light guidance, spacers or low-load shafts |
| Stainless shaft | Corrosion-resistant alloy, with hardness depending on grade and treatment | Wash-down or corrosive surroundings |
| Supported linear shaft | Hardened shaft fixed to an aluminium or steel support | Long spans where an unsupported rod would bend |
For a dry linear bearing, ask for surface hardness, effective hardened depth, roundness, straightness, finished diameter tolerance and roughness. Chrome plating alone does not replace the hardened, ground raceway that the bearing needs.
For a cylinder, match chrome integrity, roughness, plating thickness and adhesion to the rod seal and wiper design. A rod that runs well in a dry bearing can cut a hydraulic seal; a seal-ready piston rod can lack the raceway accuracy a linear bearing needs.
Give a hardened linear rod supplier in Coimbatore a written specification requiring:
- Base-steel grade and material identification
- Surface hardness and hardened-depth report
- Chrome thickness, adhesion test and finished roughness
- Diameter tolerance, roundness and straightness records
Hard chrome resists wear, not every corrosion mechanism. Scratches, pores, dents and cut ends expose the substrate, so specify stainless steel, sealing or another coating for wet service.
Will the rod fit the bearing, load and operating environment?
A 20 mm or 25 mm label does not prove compatibility. Match the finished diameter and fit to the bearing maker’s drawing: an open or closed linear bearing may require an h6-class shaft, with specified roundness, cylindricity and straightness.
Check these four risks before selecting diameter:
| Check | What to verify | Diameter decision |
|---|---|---|
| Bearing fit | Finished tolerance, roundness, cylindricity, surface hardness and effective hardened depth | Choose a hardened, ground linear shaft when the bearing raceway requires it; chrome plating alone is not equivalent |
| Bending | Radial load, unsupported span, rod orientation and allowable deflection | Calculate beam deflection and select diameter from stiffness, not static load alone |
| Vibration | Rotating speed, support spacing, natural frequency, carriage mass and bearing preload | Increase diameter, shorten the span or add supports if resonance or chatter is predicted |
| Contamination | Dust, abrasive particles, coolant, moisture, wipers and cleaning method | Specify seals, scrapers and a corrosion-resistant surface; contamination will score the chrome and bearing |
For a hydraulic-cylinder rod, check the seal manufacturer’s limits for rod roughness, chrome integrity and hardness. A rod suitable for a dry linear bearing can damage seals, while a piston rod can impose the wrong raceway condition on a linear bearing.
Specify straightness over the full supplied length and state whether inspection occurs before or after cutting. Ask a linear shaft rod supplier for the material grade, finished tolerance, hardness, chrome thickness, roughness, straightness and inspection certificate.
Linked shafts also need a vibration check after assembly, because misaligned supports can overload the bearing even when the rod itself passes inspection.
What should you verify before ordering and cutting the rod?
Verify the certificate and cut-end requirements before ordering; a visually suitable rod can fail when its raceway, plating or exposed cut face does not match the machine.
| Supply category | What to verify | Failure prevented |
|---|---|---|
| Induction-hardened, ground shafting | Surface hardness, effective hardened depth, roundness, straightness and finished-size tolerance | Linear-bearing brinelling, noise and premature wear |
| Hard-chrome-plated piston rod | Base-steel grade, chrome thickness, adhesion, roughness and seal-compatible finish | Peeling, scoring and seal leakage |
| Ordinary bright or chrome-plated bar | Whether it has a hardened raceway and controlled geometry | Buying an attractive bar that cannot carry a linear bearing |
Request these records for any hard chrome plated rod in coimbatore:
- Material identification, heat or batch number, base-steel grade and hardness report.
- Chrome thickness, plating-adhesion test, finished diameter tolerance, straightness, roundness and surface roughness values.
- An inspection or test certificate tied to the supplied batch, not a generic catalogue statement such as “100% hard chrome”.
- A quotation stating diameter, cut length, quantity, GST, freight, chrome thickness and tolerances; otherwise hard chrome plated rod price in Coimbatore is not comparable.
State the end treatment before the supplier cuts standard stock. Specify chamfer size, deburring, corrosion protection and any post-cut grinding; cutting through plating exposes steel and leaves burrs that can damage seals or bearings.
SSB INDUSTRIAL SOLUTIONS can be asked to identify whether its quoted shaft is intended for linear bearings or cylinder service and to provide the matching inspection values. Reject suppliers who cannot trace the batch or explain the proposed end finish.
Related products
 | Linear Shaft linear shaft, hardened rod, hardened shaft View product → |
 | Linear shaft hard chrome shaft ₹100 EN8 Material shaft with support & LM Bearings Starting Range from dia 6mm to 100mm Hardchorme shaft Shaft with Support LM Bearings Open & Closed type... View product → |
Frequently asked questions
When does a hard chrome plated rod pay for itself?
It pays for itself when its wear resistance reduces rod replacements, seal damage and unplanned machine downtime over the expected service period.
What should a comparable Coimbatore quotation include?
Ask for the base material, finished diameter, length, chrome thickness, surface hardness, straightness, surface finish, tolerances, quantity, delivery time and applicable taxes.
Which rod construction and chrome specification fit the duty?
Choose the construction and chrome specification from the load, corrosion exposure, sliding speed, seal design and required wear life rather than price alone.
How do you verify rod fit before ordering and cutting?
Check the rod diameter and tolerance against the bearing or guide, confirm load and alignment, inspect the operating environment, and verify certificates and surface condition before cutting.
