A linear guideway rail receives plenty of attention during machine design, but the component travelling on that rail is equally important. The Runner Block and Carriage for Linear Guideways supports the moving assembly and transfers loads between the machine structure and guide rail.
Understanding how the block works makes it easier to choose an appropriate linear-motion arrangement for automated equipment.
What Is a Runner Block?

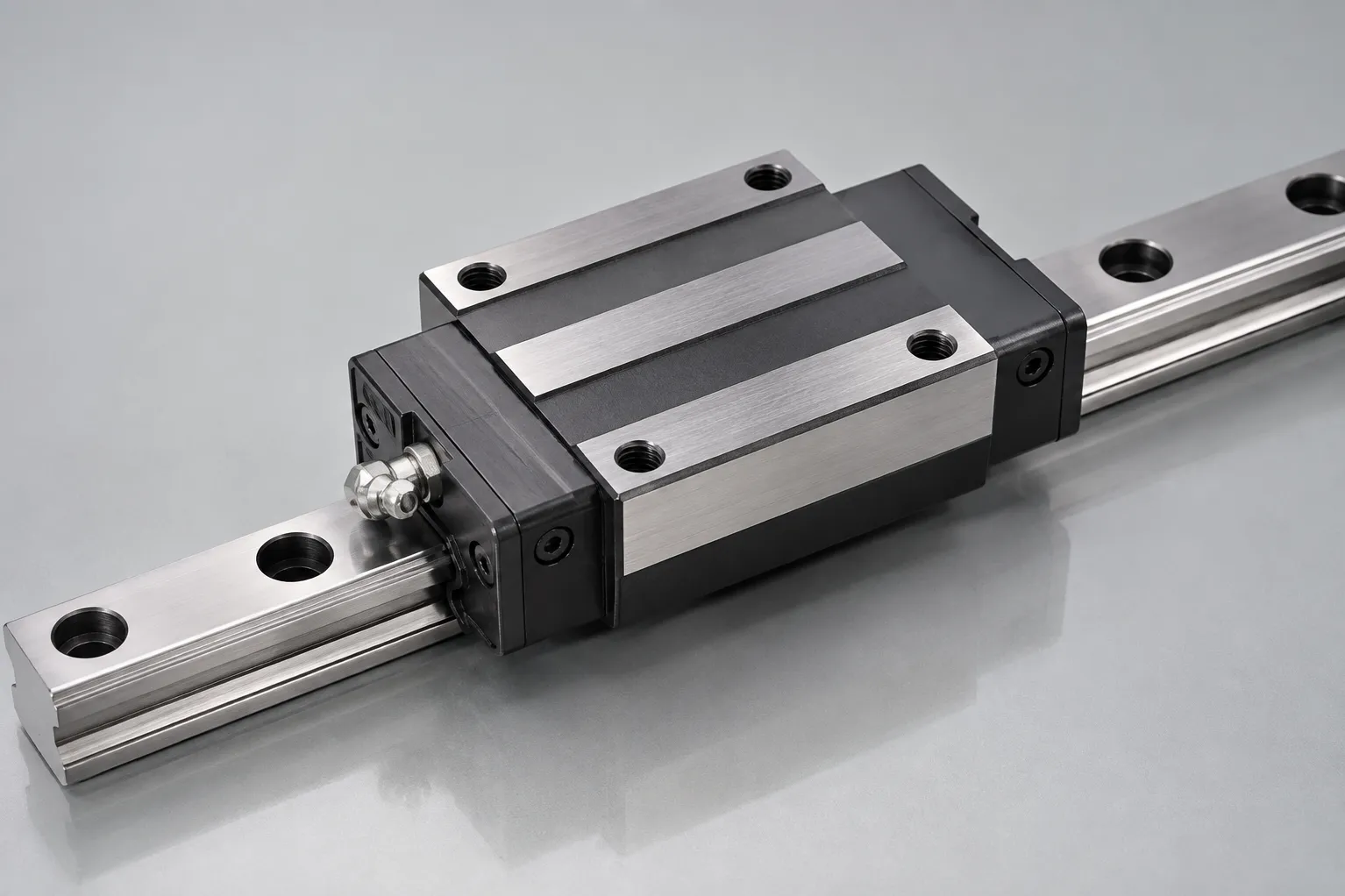

A runner block, often referred to as a carriage or linear guide block, moves along a compatible guide rail. Internally, rolling elements circulate through specially designed raceways as the block travels.
This construction provides low-friction linear movement while allowing the assembly to support loads.
Depending on the series and application, blocks may differ in:
- Overall dimensions
- Mounting configuration
- Load capacity
- Preload
- Accuracy class
- Flange or non-flange construction
- Lubrication arrangement
- Sealing options
This is why two blocks that appear similar externally should not automatically be treated as interchangeable.
Why Block Size Cannot Be Selected by Appearance
A machine designer needs to understand how the load will act on the carriage.
Consider an automated fixture carrying a component away from the centreline of the guideway. The block may experience not only the direct weight of the assembly but also a moment generated by the offset.
Acceleration can add another dynamic force.
The correct selection therefore depends on the complete loading condition rather than the physical size of the moving plate alone.
One Block or Multiple Blocks?
Many machines use two rails with two or more blocks per rail. Other systems can operate with different arrangements depending on the required rigidity, load and space available.
Using multiple blocks can distribute loads and improve resistance to moments. However, additional blocks also increase the importance of accurate installation.
Poor parallelism between rails can create internal stresses, increased running resistance or uneven load distribution.
Machine designers should determine the arrangement during the mechanical design stage rather than adding blocks later as a general precaution.
Preload and Rigidity
Preload can reduce internal clearance and improve system rigidity. This can be valuable in machinery where controlled positioning is important.
More preload, however, is not automatically better.
Excessive preload can increase rolling resistance and affect service life if it is inappropriate for the application. The correct level should reflect the machine's accuracy, rigidity, loading and operating requirements.
Lubrication and Contamination Protection
Runner blocks contain moving contact surfaces, making lubrication an important part of long-term performance.
Maintenance planning should consider:
- Lubricant type and compatibility
- Lubrication intervals
- Accessibility after machine assembly
- Dust, coolant or chip exposure
- Seals, scrapers or additional protection where required
Waiting until the machine has been completely assembled to consider lubrication access can make routine maintenance unnecessarily difficult.
Relevance for Machinery Built in Coimbatore
Machine manufacturers in Coimbatore serve industries ranging from textiles and automotive engineering to pumps, general manufacturing and automation. Linear guideway applications can therefore vary from light positioning equipment to demanding production machinery.
When sourcing a Runner Block and Carriage for Linear Guideways, engineering teams should communicate the rail series, required block configuration, operating load and machine conditions clearly.
SSB Industrial Solutions works with industrial customers in Coimbatore and other manufacturing locations across Tamil Nadu where component selection needs to align with actual machinery requirements.
For procurement teams, compatibility should remain a priority. A replacement carriage needs to be evaluated against the installed rail and relevant technical specifications rather than selected merely because its nominal dimensions appear similar.
The runner block may be relatively compact compared with the machine it supports, but its selection, installation and maintenance can have a direct influence on the consistency of the entire linear-motion system.
